Drawing Machine

A drawing machine that is criticised, and argues back

A local system for making drawings by moving between platforms: generators, a learned charcoal hand, an eraser, small checked edits, and a critic built from the Visual Thinking Lens. Every move is recorded. A drawing stops only at an argued Hold.

Hold · still life: the cup holds its dark inside a light rim; the apple’s dark lies outside it.
Hold · still life: the cup holds its dark inside a light rim; the apple’s dark lies outside it.
Hold · sheet 5: a seated figure from behind, after three critic/ChatGPT loops.
Hold · sheet 5: a seated figure from behind, after three critic/ChatGPT loops.
Sheet 4 (set aside): Kollwitz charcoal by Hands, a face taken back, a second head blocked in.
Sheet 4 (set aside): Kollwitz charcoal by Hands, a face taken back, a second head blocked in.

What it is

A motor that draws like a hand

The marks come from Hands: learned mark vocabularies (here Käthe Kollwitz's charcoal), laid stroke by stroke on a real canvas, each stroke accepted only if it pays for itself. Language models never write coordinates.

Sources are targets, never pixels

A Midjourney image, a ChatGPT refinement, a museum drawing, a rendered still-life stage or a few authored value shapes become a value plan. Hands draws toward it; nothing generated is pasted onto a canvas.

Edits that can be checked

Small native actions (keep this paper, join these darks, break this ruled edge, lay this ground even) chosen by a measured loss, with guards: nothing changes outside its region, a soft edge is not damaged, a later edit cannot undo an earlier one, and every result replays exactly.

A critic that can say no

The VTL kernels, tonal and mark readers and colour analyser produce a packet of numbers with what each may and may not mean; the engine passes read it. The critic may recommend abandoning a direction, and its predictions are checked against the next image.

A record of every move

A ledger line per pull between platforms (tool, platform, hashed inputs and outputs, the prompt verbatim, who made the call), and a lineage video that separates the line that was kept from the branches that were not.

A method, not a pipeline

An inquiry before an appearance; thumbnails in sets with criticism between them; the strongest counterexample to the favourite; a passage of uninterrupted work; Hold argued from relations that can be pointed to.

The loop

a referencegenerator · museum · stageauthored plan · a drawing the critic readsmeasured packet + passesmay say: abandon, go back the artist actsHands · eraser · intentionsanswers the handoff Holdargued, with itsstrongest objection not yet: back out (to a generator, or the next sitting) every move is a ledger line: tool, platform, hashed in/out, prompt verbatim, who

Four bodies of work

Narrative: a figure, a field, an open cage

A new figure stage, 22 native thumbnails, one ChatGPT loop, and Hold on the version whose grass keeps the rhyme with the bars.
A new figure stage, 22 native thumbnails, one ChatGPT loop, and Hold on the version whose grass keeps the rhyme with the bars.

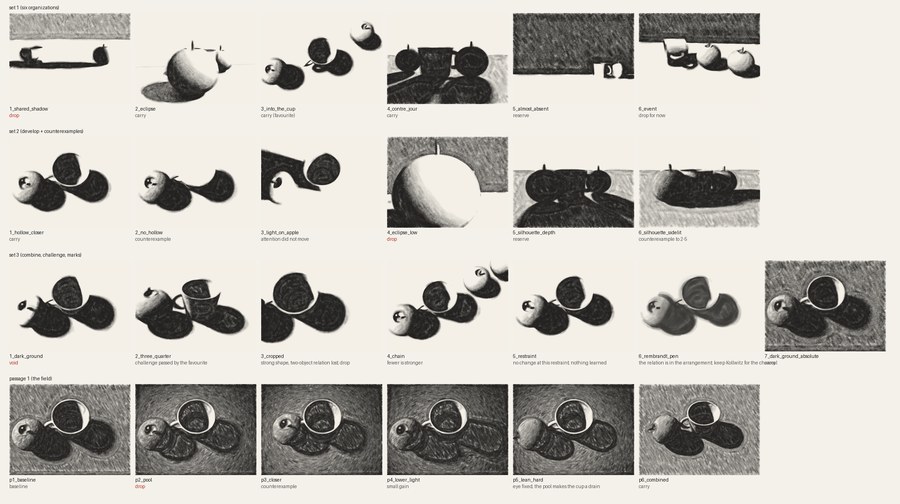

Still life: teacup and apple

25 native thumbnails across three sets and a passage, then one ChatGPT loop and native work to Hold.
25 native thumbnails across three sets and a passage, then one ChatGPT loop and native work to Hold.

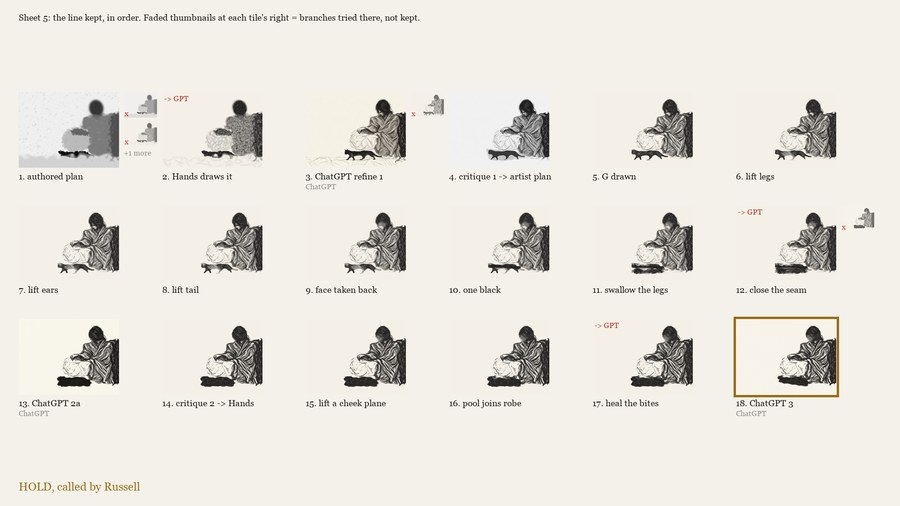

Sheet 5: a seated figure

From an authored plan with no generated image, through three critic and ChatGPT loops, to Hold.
From an authored plan with no generated image, through three critic and ChatGPT loops, to Hold.

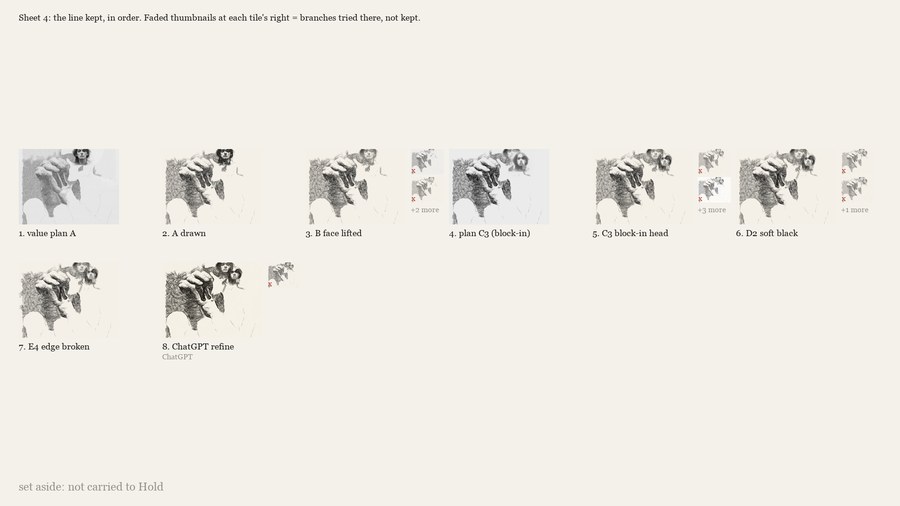

Sheet 4: hands and two heads

The first Hands drawing of a chosen direction, and where the edit tools were built.
The first Hands drawing of a chosen direction, and where the edit tools were built.

Videos

Still life, 52 states from the Midjourney default to Hold (3:16).
Sheets 4 and 5, every state in order (2:25).

A sibling build, Study Wall, works on what comes before the drawing and around it: a brief read before any picture exists, a wall of studies, an argued choice, and paintings that must survive a critic's test.
