A connected surface.
A harder test of the fit.

Multi-HMR 2 body inference, Anny articulation, bounded facial-point fitting and diagnostic camera/side views. These are technical meshes, not finished drawings.

Connected surfaces are editable; the automatic fit is not yet a trustworthy drawing target.

All three drawings produced a body mesh; neither nonfigure control did. The rig supports a connected head-lowering edit, but contact, limb placement and uncertain head fitting still prevent artistic retention.

The source-code limitation that matters

The inspected checkpoint decoder fixes head and neck local rotations to their defaults. It supplies a body surface and a rig, but does not itself recover the head articulation we need. The optional fitting stage below is our separate experiment, grounded in the prior model’s estimated facial points.

reach-01

Detected bodies: 1. Facial-point weighted RMSE: 11.45 → 3.15 pixels. This measures agreement with inferred points, not anatomy.

reach-01: Uncorrected body fit over source — Uncorrected body fit over source

reach-01: Uncorrected body surface — Uncorrected body surface

reach-01: Head fit to inferred facial points — Head fit to inferred facial points

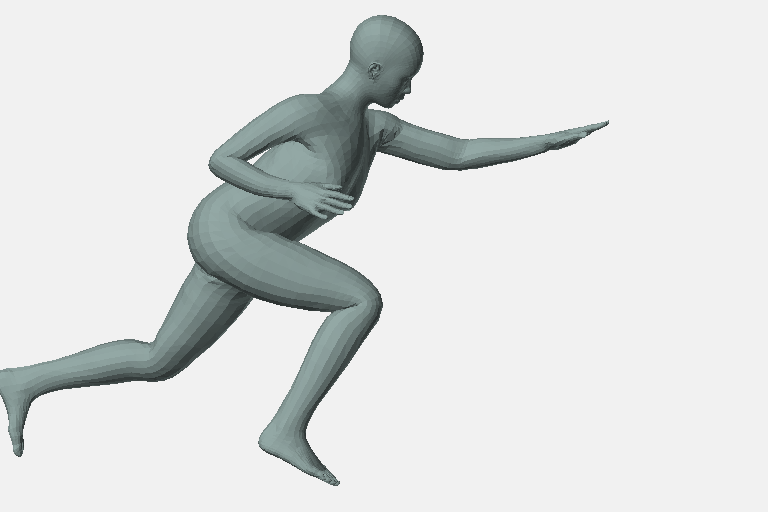

reach-01: Fitted head / same camera — Fitted head / same camera

reach-01: Corrected direction / connected head lowering — Corrected direction / connected head lowering

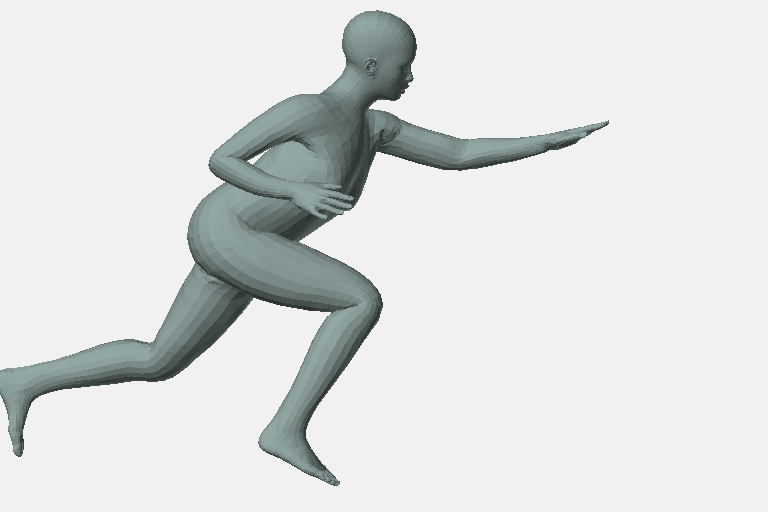

reach-01: Rejected direction / chin lifted — Rejected direction / chin lifted

reach-01: Negative pitch rig test — Negative pitch rig test

reach-01: Positive pitch rig test — Positive pitch rig test

reach-01: Negative pitch / side view — Negative pitch / side view

reach-03

Detected bodies: 1. Facial-point weighted RMSE: 13.65 → 12.68 pixels. This measures agreement with inferred points, not anatomy.

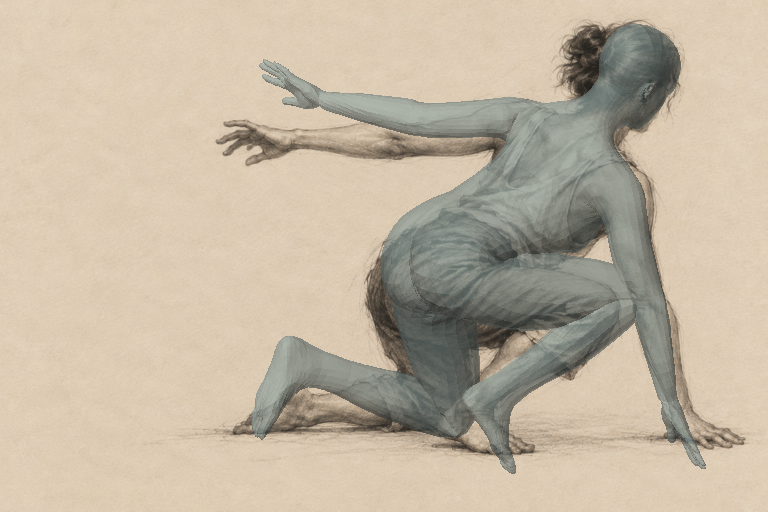

reach-03: Uncorrected body fit over source — Uncorrected body fit over source

reach-03: Uncorrected body surface — Uncorrected body surface

reach-03: Head fit to inferred facial points — Head fit to inferred facial points

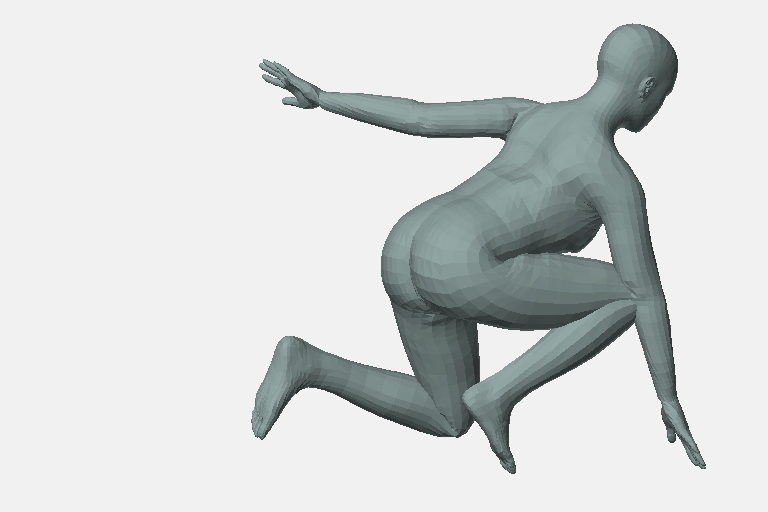

reach-03: Fitted head / same camera — Fitted head / same camera

reach-03: Corrected direction / connected head lowering — Corrected direction / connected head lowering

reach-03: Rejected direction / chin lifted — Rejected direction / chin lifted

reach-03: Negative pitch rig test — Negative pitch rig test

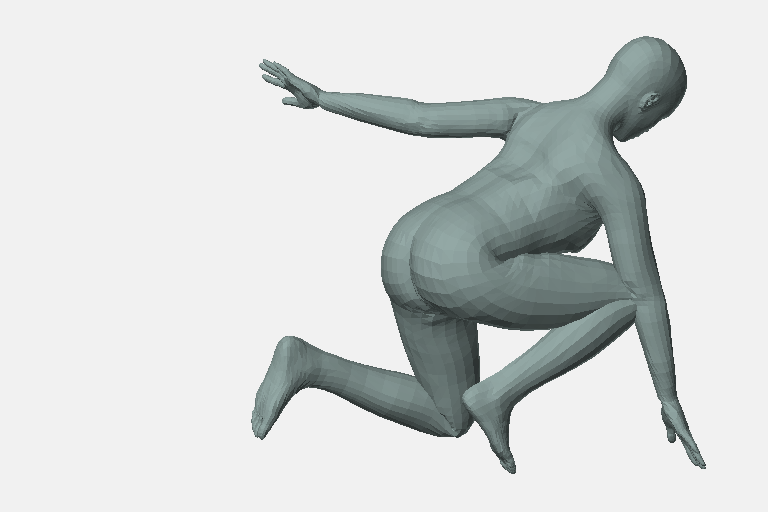

reach-03: Positive pitch rig test — Positive pitch rig test

reach-03: Negative pitch / side view — Negative pitch / side view

plain-00

Detected bodies: 1. Facial-point weighted RMSE: 7.32 → 4.07 pixels. This measures agreement with inferred points, not anatomy.

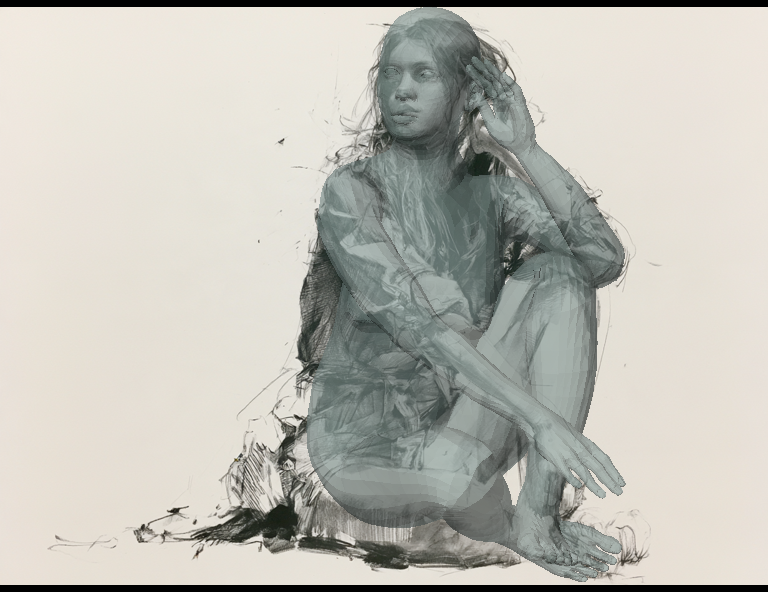

plain-00: Uncorrected body fit over source — Uncorrected body fit over source

plain-00: Uncorrected body surface — Uncorrected body surface

plain-00: Head fit to inferred facial points — Head fit to inferred facial points

plain-00: Fitted head / same camera — Fitted head / same camera

plain-00: Corrected direction / connected head lowering — Corrected direction / connected head lowering

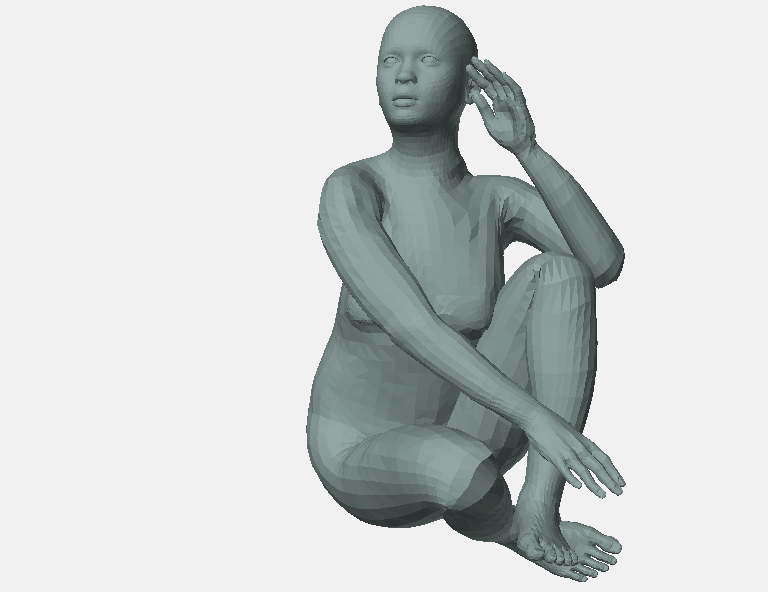

plain-00: Rejected direction / chin lifted — Rejected direction / chin lifted

plain-00: Negative pitch rig test — Negative pitch rig test

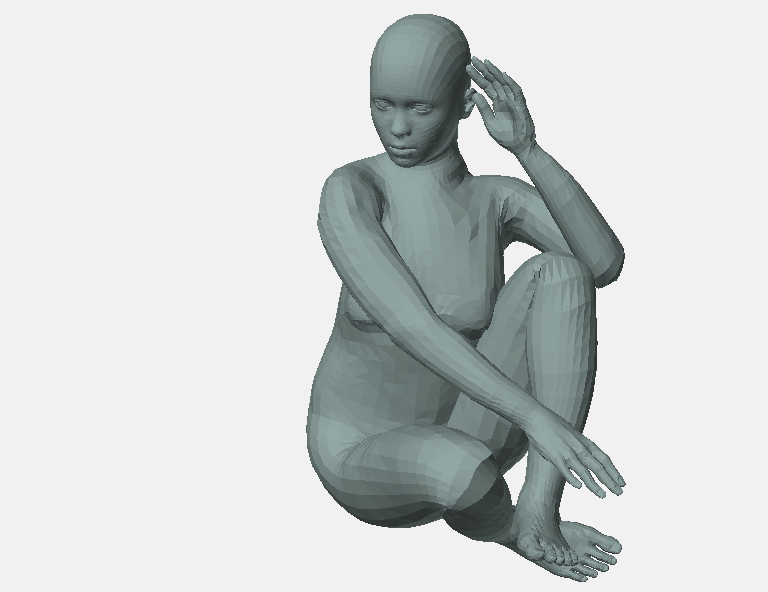

plain-00: Positive pitch rig test — Positive pitch rig test

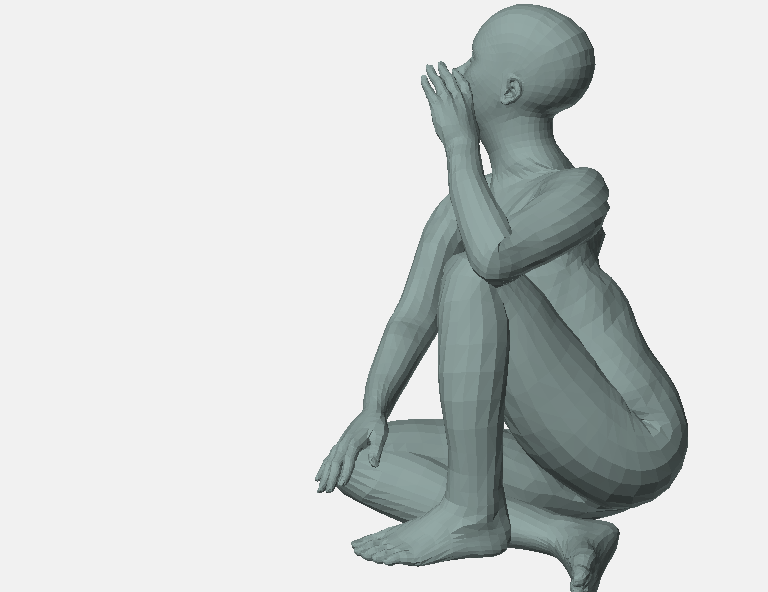

plain-00: Negative pitch / side view — Negative pitch / side view

Negative controls

control-abstract: 0 detected bodies.
control-stilllife: 0 detected bodies.

Visual judgment and retention

Reach-01: the torso and reaching gesture are recognizable. The rear foot extends beyond the image and misses its original ground contact; the forward foot also differs. A high detection confidence did not protect these relationships.

Reach-03: the broad crouch survives, but the reaching arm is higher than the source and the feet/supporting hand do not convincingly share its ground. The inferred head orientation remains uncertain. Facial-point fitting changed weighted RMSE only from 13.65 to 12.68 pixels.

Plain-00: the seated construction is comparatively recognizable, including the hand raised beside the head. Hands, shoulder and leg placement still differ from the source; clothed contours are not reconstructed by a body mesh.

Facial-point fitting reduced RMSE from 11.45 to 3.15 pixels for reach-01 and from 7.32 to 4.07 for plain-00. These are agreements with another model’s estimates, not measurements against anatomical ground truth.

The initial negative local-X articulation lifted the chin. Visual review rejected that direction. The positive local-X version lowers the head in the inspected views while keeping a connected neck. Both attempts are preserved.

Side views expose plausible-looking but unverified depth arrangements. Fixed topology and unchanged unrelated joints do not rule out self-intersection, unstable balance or an incorrect body interpretation.

Retain the body-model adapter as a research component. Before converting these meshes into drawing plans, fit and validate whole-body constraints: source-aligned limb landmarks, hand/foot contacts, camera and occlusion. Reject a mesh that improves one local fit while breaking those relationships. Artistic simplification and mark planning remain separate from mesh fitting.

What was actually computed

Infer camera, shape and bone transforms from pixels, preserving the uncorrected result.
Reconstruct the mesh from its saved parameters and require a close vertex roundtrip before editing.
Change local neck/head rotations through the connected rig, regenerate the surface, and check unrelated bones.
Separately fit three shared rotation parameters to nose/eye/ear estimates. Hold camera, shape and body fixed.
Render the resulting meshes with a depth buffer. Inspect camera and side views separately from the numerical checks.

A lower projection error is not proof of correct anatomy. The tests do not certify collision freedom, identity, clothing, balance or artistic quality. No source image pixels are warped into these mesh surfaces.
